Weighed Vacuum: Combining Conveying and Weighing in a Single Step

In industrial batch dosing, the need for compact layouts, minimized intermediate equipment costs, and dust-free hygienic processes is steadily growing. VOLDE weighed-vacuum dosing systems are advanced batch dosing solutions in which conveying and weighing for multi-ingredient recipes are combined in a single step using a weighed vacuum cyclone. By consolidating weighing and feeding operations into a single hub, the need for intermediate equipment is reduced, the process is simplified, operator dependency is minimized, and a compact, flexible, dust-free system architecture is achieved.

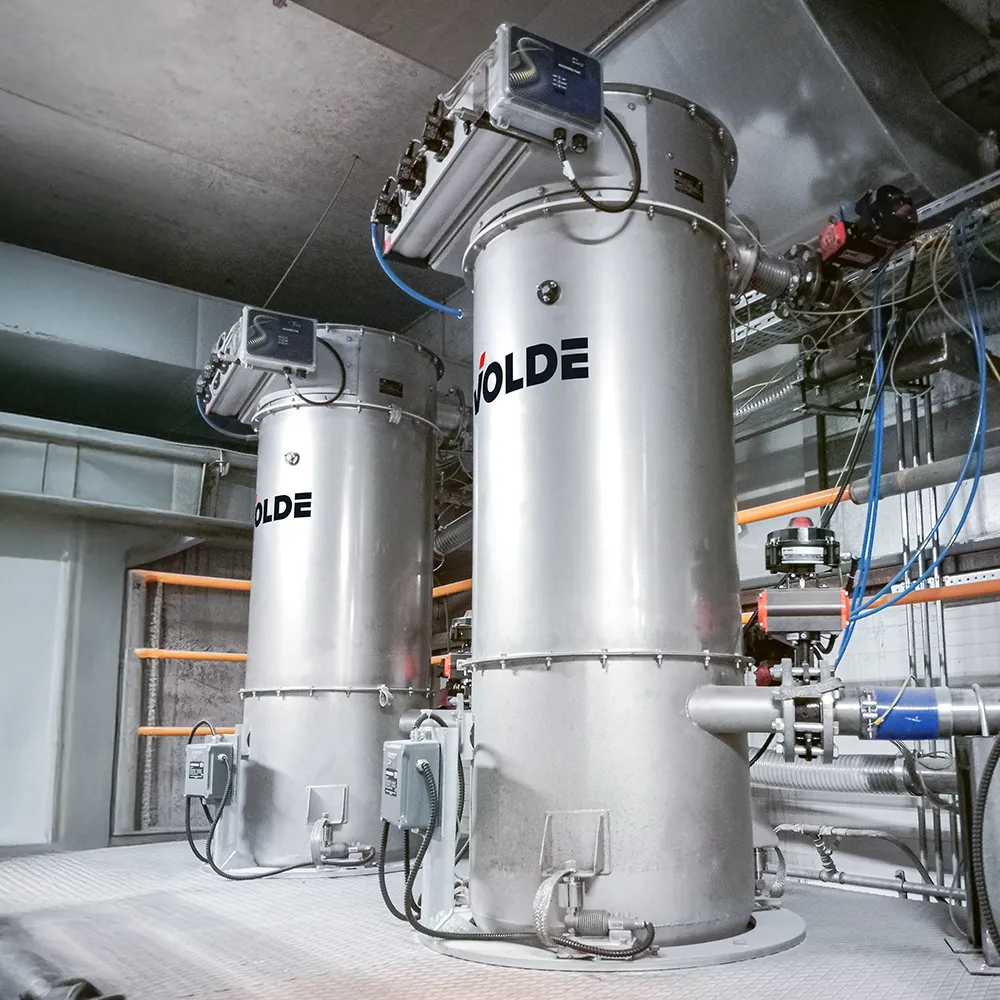

| Vacuum-Weighed Batch Dosing

Vacuum-weighed batch dosing is a batch preparation method in which vacuum pneumatic conveying and gravimetric weighing functions are combined within a weighed vacuum cyclone. In a weighed vacuum system:

• The raw material is weighed at the same time it is drawn in by vacuum — a single step
• The weighed cyclone is positioned directly above the mixer
• The need for intermediate bins, transfer equipment, and additional lines is eliminated

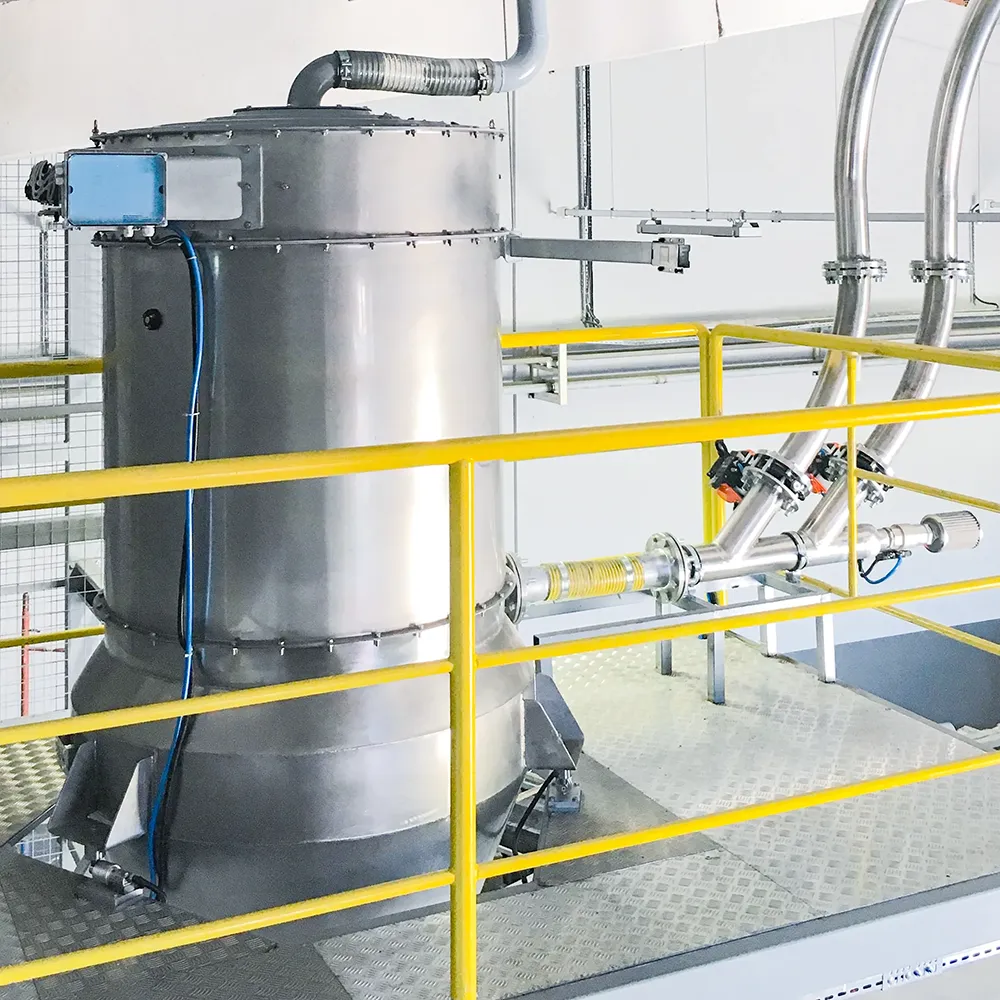

| Weighed Vacuum Cyclone

At the heart of the system is the VOLDE Weighed Vacuum Cyclone. It weighs raw materials taken from big-bag discharge units, bag dumping stations, or bins at the same time they are conveyed by vacuum. Operating principle:

• Line Selection - The PLC activates the relevant raw material line according to the recipe
• Fast Vacuum Draw - Material is drawn into the cyclone by high-flow-rate vacuum
• Slow Draw (Fine Dosing) - The system switches to low-flow-rate mode as the target weight is approached
• Automatic Cutoff - The vacuum is automatically cut off once the recipe weight is reached
• Next Raw Material - Vacuum draw into the same cyclone begins for the next ingredient

Explore our page to see other Batch Dosing systems and alternative solutions

Batch Dosing Systems

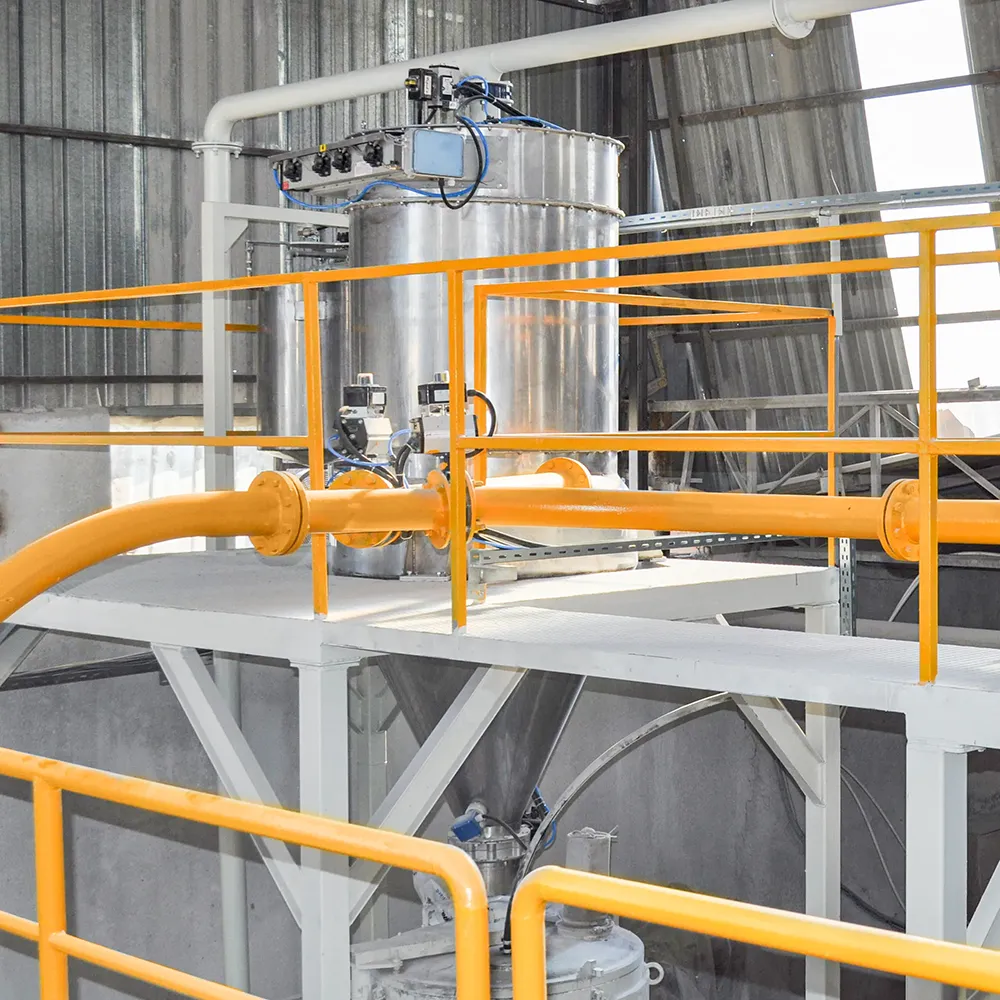

| Multi-Point Feeding and Automatic Line Selection

Multiple raw material sources are connected to a manifold formed at the cyclone inlet. Automatic dampers on the manifold are opened in sequence by the PLC, ensuring that only the selected line is switched to vacuum. Thanks to this structure:

• Different raw materials are weighed through the same system in the order specified by the recipe
• After the main raw materials are weighed, an additive mixture pre-weighed in the additive dosing section can also be drawn into the cyclone via a separate vacuum line
• The full formulation to be fed into the mixer is collected at a single point
• Process safety and traceability are increased

| Which Industries Is It Used In?

VOLDE vacuum-weighed batch dosing systems are preferred in processes requiring a dust-free hygienic process, compact layout, and minimized intermediate equipment:

• Plastics — PVC Dry Blend Preparation
• Chemical — Resin & Adhesive, Paint & Coatings, Tires & Rubber
• Mineral — Aluminum Composite Panel, Transformer Manufacturing
• Food — Hygienic Process

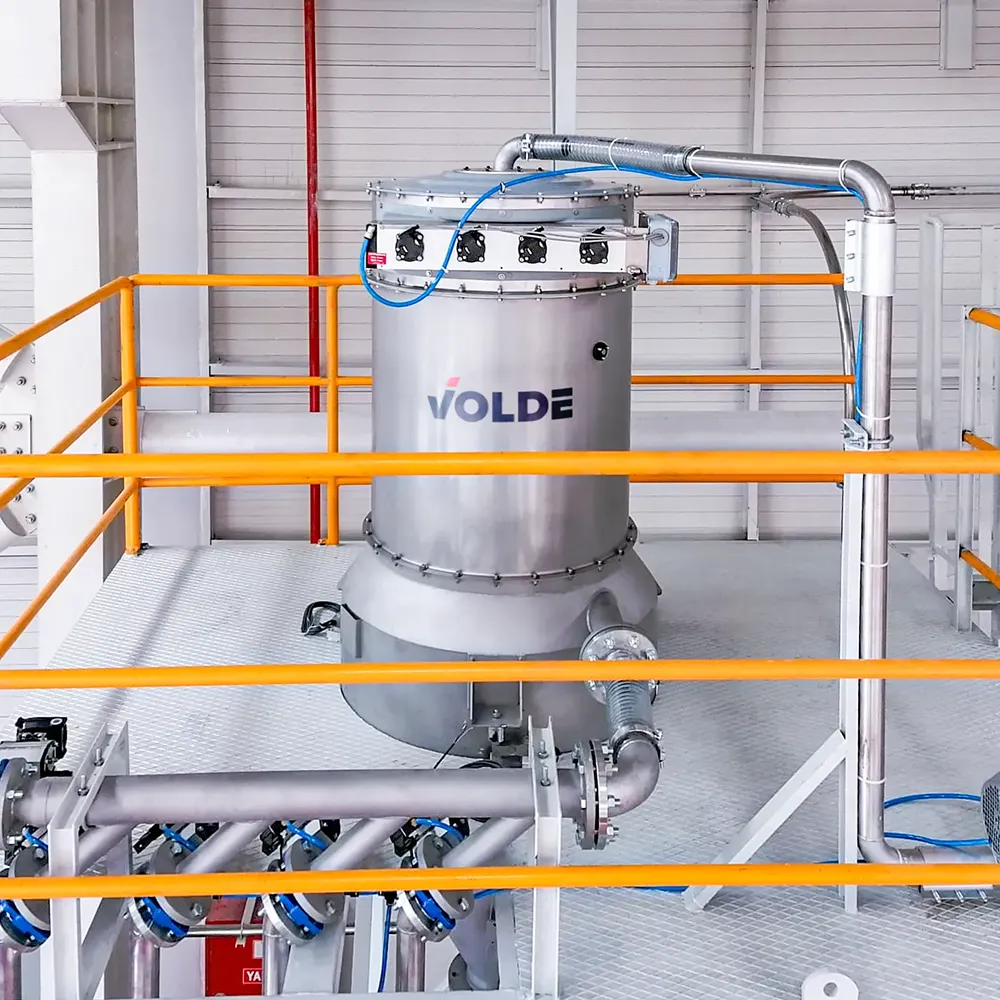

Vakum Tartım Çok Noktadan Besleme ve Otomatik Hat Seçimi

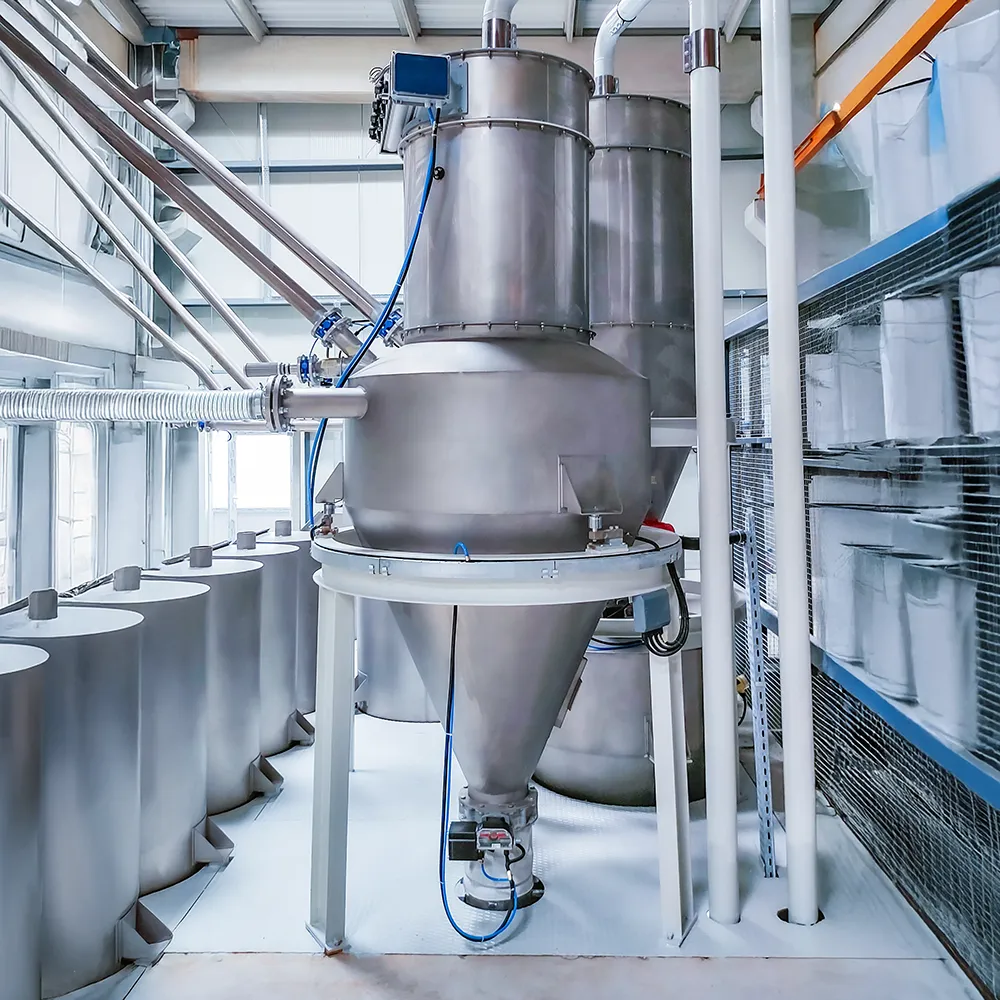

Vakum Tartım Çok Noktadan Besleme ve Otomatik Hat Seçimi 2

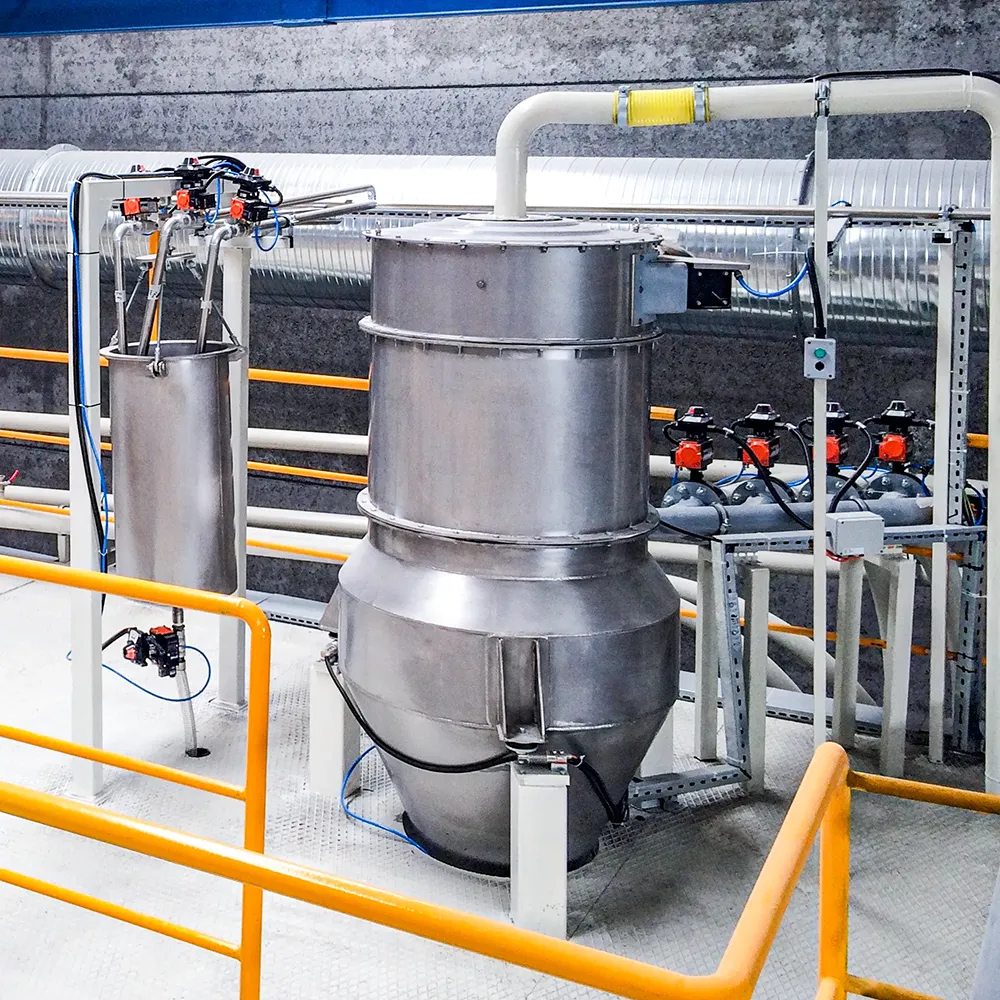

Vakum Tartım Çok Noktadan Besleme ve Otomatik Hat Seçimi 3

| The VOLDE Difference in Weighed-Vacuum Dosing

_ Heavy-Duty Design

VOLDE vacuum cyclones are designed to operate safely with more challenging powder materials and dense, abrasive products compared to simple vacuum conveyors.

_ Precise Dosing

High weighing accuracy in vacuum conveying systems is achieved through proper system design, line geometry, and engineering calculations.

_ Food-Grade & ATEX Compliant

Food-contact-suitable material options and ATEX design alternatives for explosive environments can be offered.

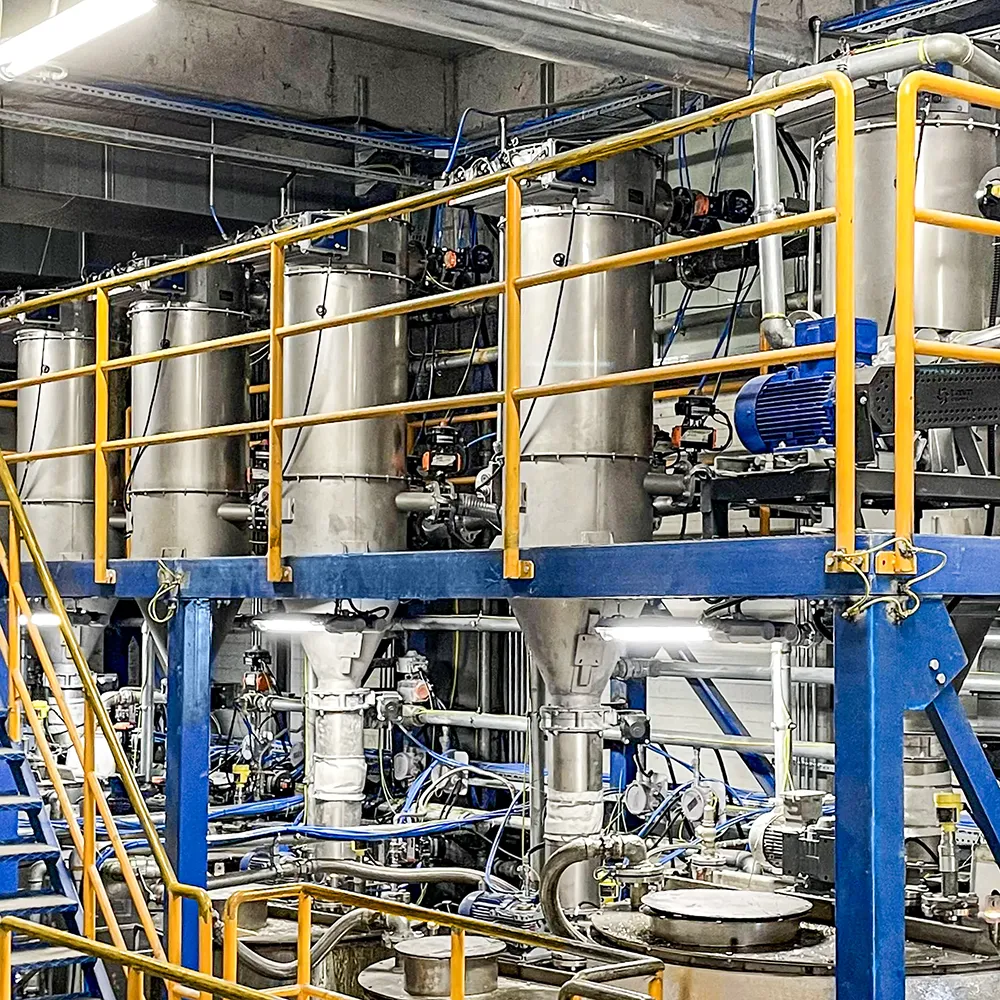

_ Flexible, Expandable Structure

Material can be drawn from the same feeding points to multiple mixers. In later stages, new mixers can be easily added to the system simply by adding an extra cyclone or a cyclone + blower.
