Precise Weighing and Dosing Solution for Multi-Ingredient Recipes

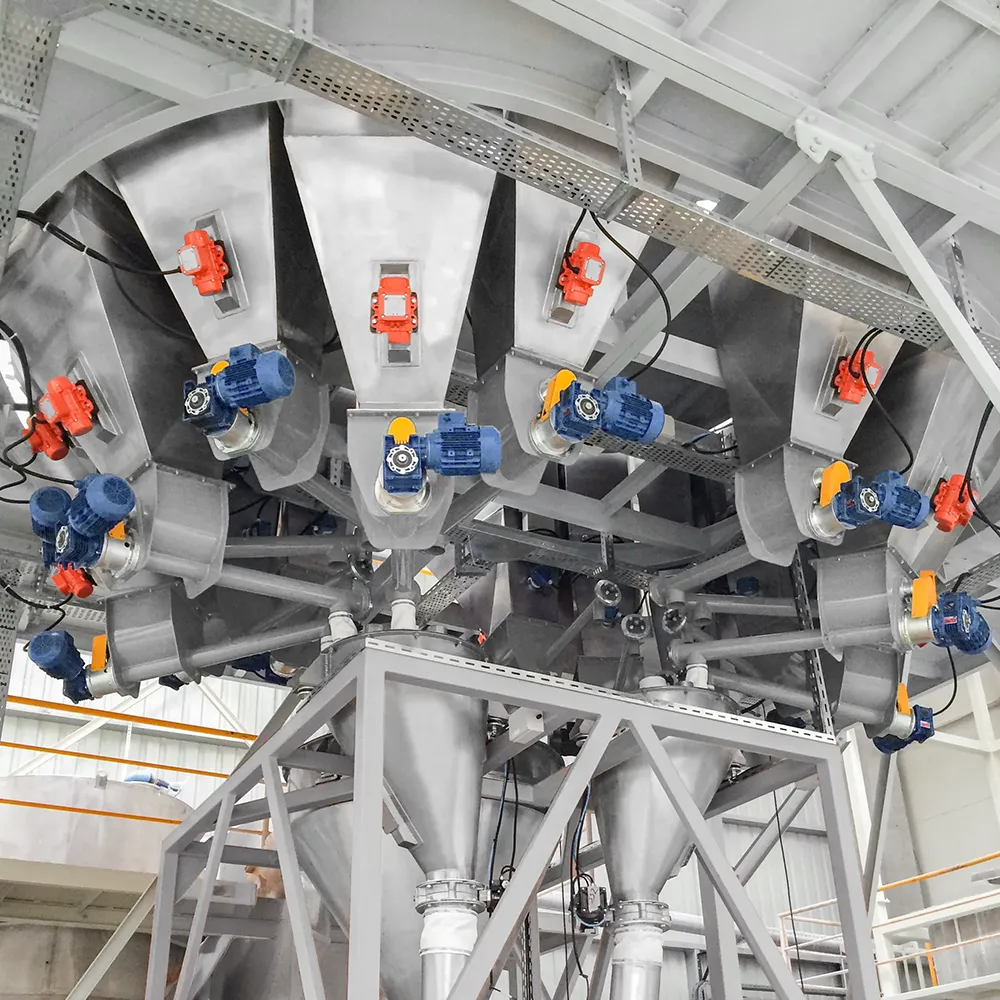

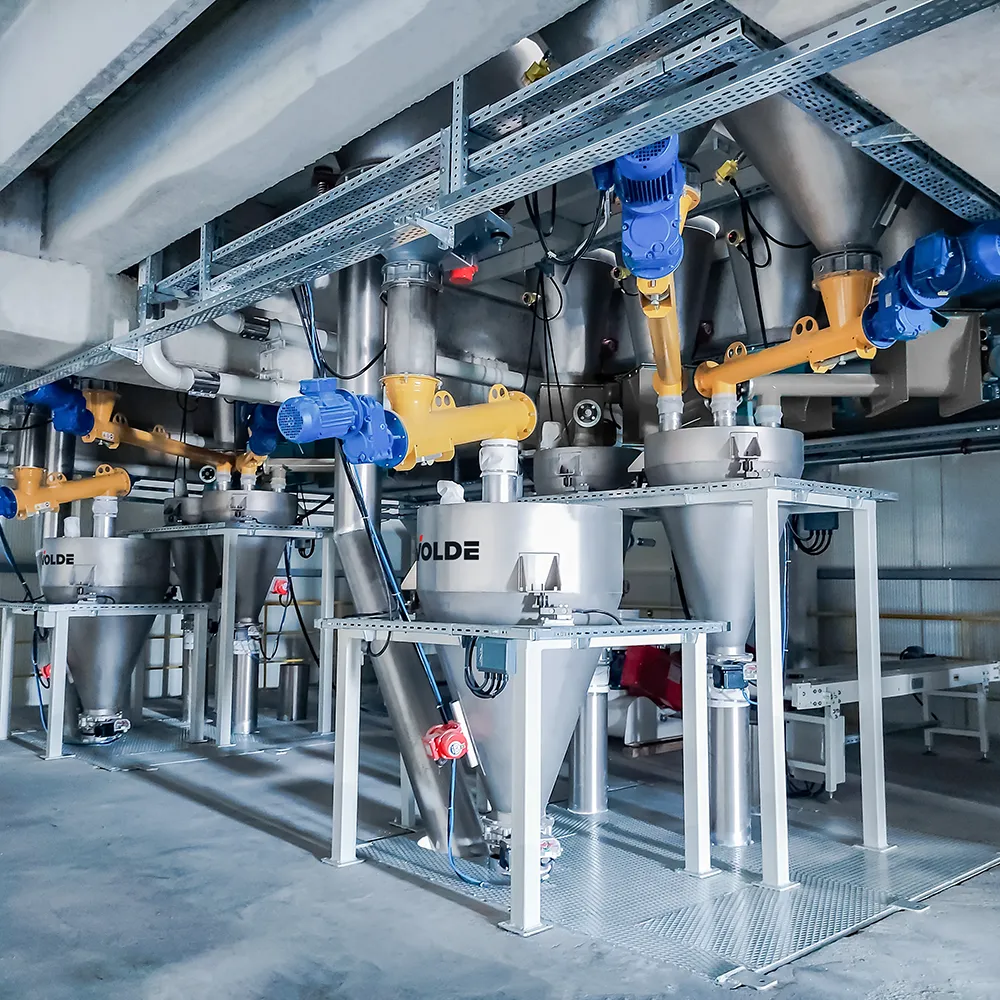

The central weighing-hopper batch dosing system is a gravimetric automatic dosing method in which a small to moderate number of raw materials are weighed in sequence in a single weighing hopper according to the recipe. This method is particularly preferred in processes requiring high weighing precision. Each raw material is dosed to the target weight by the automation system using a two-stage feeding logic (coarse feed + fine feed); feeding stops automatically once the tolerance range is reached. Once all components are complete, the batch is transferred to the mixer or to the next process stage.

| System Architecture and Layout

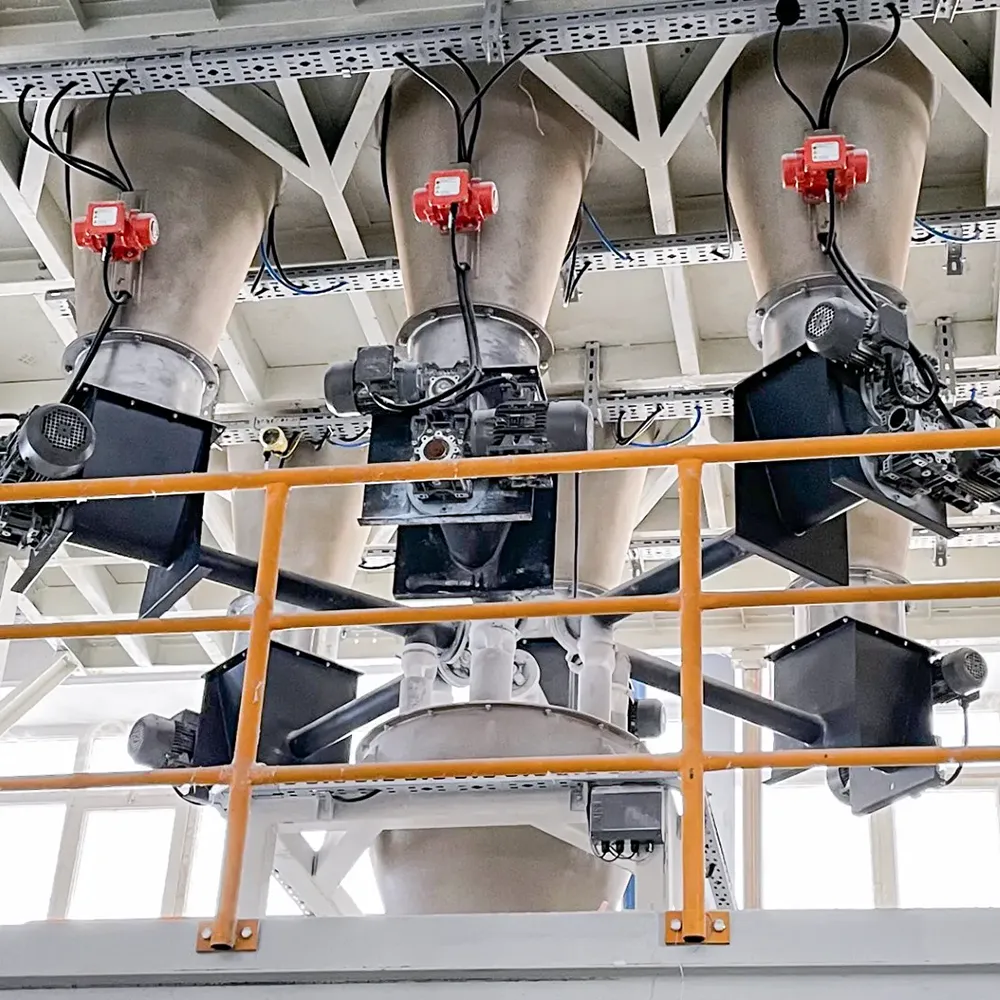

In the system, bag dumping stations, big-bag discharge units, small silos, or pneumatic conveying receivers are positioned around the central weighing hopper. Thanks to this compact layout:

• Ease of maintenance and access
• Small footprint (ideal especially for tight factory spaces)
• High accuracy with a single weighing point
• Cost optimization (no need for a separate weighing system for each raw material)

| Two-Stage Precision Weighing

• Coarse Feed: Dosing at high flow rate up to a point close to the target weight
• Fine Feed: Precise weighing at low flow rate as tolerance is approached
• Tolerance Control: Automatic stop once the target weight is reached
• Batch Transfer: Transfer to the mixer or vacuum cyclone once all raw materials are complete

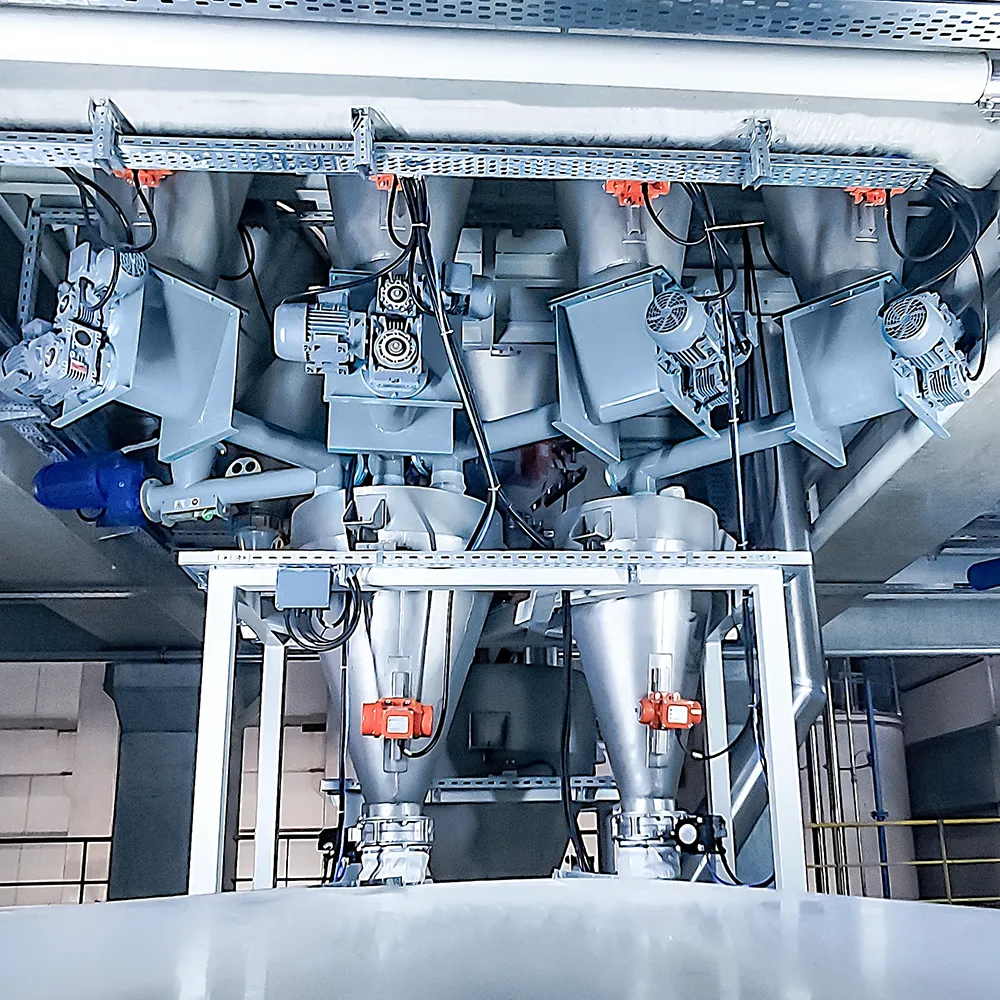

| Parallel Weighing and Multi-Line Configuration

In facilities with a high production tempo, parallel batch preparation is possible using multiple weighing hoppers or rotary/tilting weighing mechanisms. Thanks to this structure::

• Simultaneous feeding to multiple mixers
• Parallel preparation of different recipes
• A 30–50% increase in production speed

| Custom Solutions for Difficult-Flowing Materials

For raw materials with poor flowability, a tendency to bridge, or a tendency to stick, the system is supported with the following solutions:

• SILOCONE Bin Activator — Anti-bridging flexible bin activator
• Screw Feeder with Agitator — Active feeding for compacting material
• Vibration Motor, Pneumatic Knocker, and Air Pad — Flow-assist equipment
• Custom Bin Geometry — Design tailored to the flow behavior of the raw material

These solutions ensure stable and repeatable dosing even at very small quantities.

Paralel Tartım ve Çoklu Hat Yapılandırma

Explore our page to see other Batch Dosing systems and alternative solutions

Batch Dosing Systems

| System Components

Merkezi Hammadde Tartım ve Loadcell Grubu

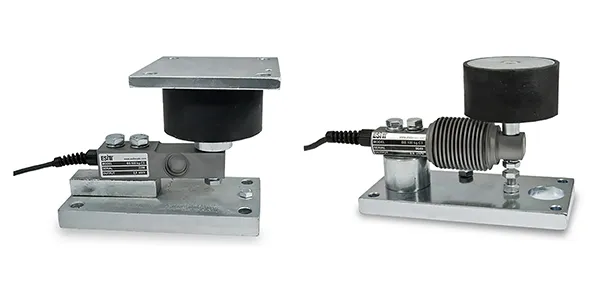

_ Weighing & Load Cell Group

The weighing hopper, equipped with high-resolution load cells, ensures maximum accuracy and long-term stability in batch weighing.

Merkezi Hammadde Tartım Dozajlama Ekipmanları

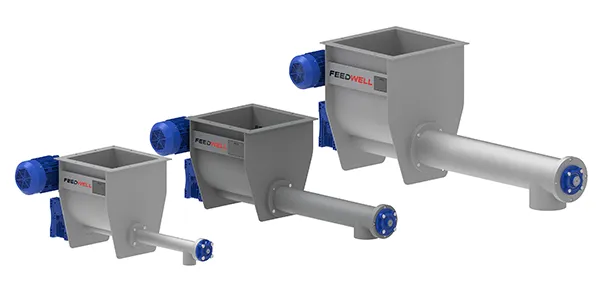

_ Dosing Equipment

Screw feeder, rotary valve, flap valve, or vibratory feeder options are specifically selected for each raw material.

Merkezi Hammadde Tartım Besleme Bunkerleri

_ Feed Bins

Bins and silos designed with geometries suited to product flow minimize bridging.

Merkezi Hammadde Tartım Otomasyon ve Kontrol

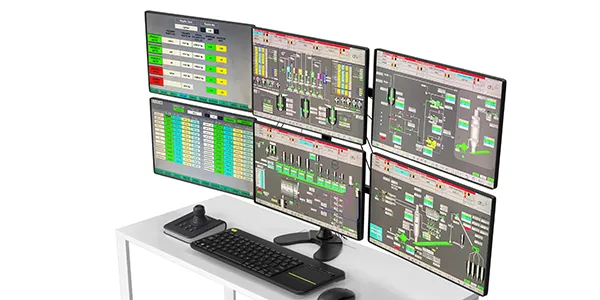

_ Automation & Control

PLC-based recipe management, SCADA batch control, production reporting, and ERP & MES integration

| Key Features

• ±0.1% – ±0.5% dosing accuracy
• High-resolution load-cell-based weighing
• Two-stage (coarse/fine) dosing control
• PLC-based recipe management
• SCADA / MES / ERP integration
• Batch traceability and production reporting
• Modular, expandable structure
• Engineering design tailored to your process

| Which Industries Is It Used In?

• Plastics & Cable Industry — PVC dry blend, PVC compound, cable insulation mixture
• Chemical Industry — Detergent powder dosing, construction chemicals, paint pigment dosing
• Mineral & Refractory — Refractory dry mix, foundry core sand, mineral blending
• Food Industry — Tea blending, food premix additives, functional food dosing
• Building Materials — Dry mortar, plaster, ready-mix concrete additives
